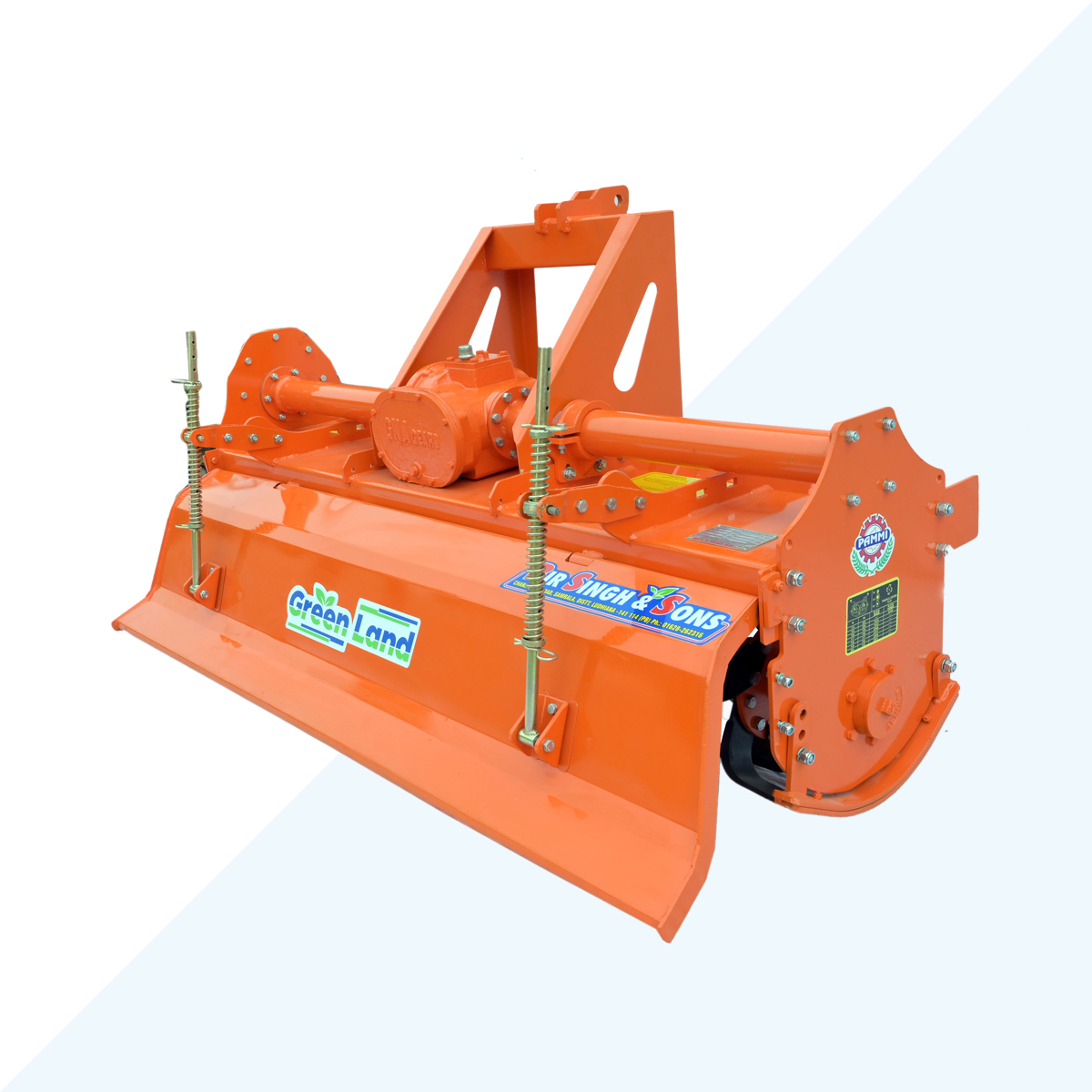

6 Feet Rotavator
Salient Features
- Export quality heavy duty frame
- Ensures timely sowing of crops
- Improve soil health quality
- Easy availability of spare-parts
- Heavy duty Gear-Box for easy operations
- Parts made with computerized CNC
Specifications
| Working Width (mm) | 5-'1605, 6'-1870, 7'-2110, 8'-2360 |
|---|---|
| Type of Blade | L-Type |
| Overlap (mm) | 15 |
| Thickness of Blades (mm) | 7 |
| No. of Blades | 5'36 BL, 6'-42 BL, 7'-48 BL, 8'-54 BL |
| Total number of flange | 5'-6 flange, 6'-7 flange, 7'8 flange, 9'-9 flange |
| No. of Blades Per Flange | 6 Blades Per Flange |
| Outer Diameter of Rotor Shaft (mm) | 70 / 90 Diameter |
| Rotor Diameter (mm) | 430 |
| Side Drive | Gear Drive |
| Material of Blades | Boron |
| Safety Clutch (Shear Bolt) in PTO Shaft | Shear Bolt PTO Shaft |
| Rotavator Stand | Yes |
| Ground Over Propeller Shaft | Yes |
| Making / Labelling of Machine | Provider |
| Literature | Provider |
